介绍

ros2_control 是一个使用 ROS2 控制机器人的框架，它将控制逻辑和硬件接口解耦，可以非常方便的替换控制逻辑或者硬件接口。

比如对于两轮差速小车，控制器可以使用两轮差速控制器，小车轮子的硬件接口可以随时切换为仿真小车或真实小车。

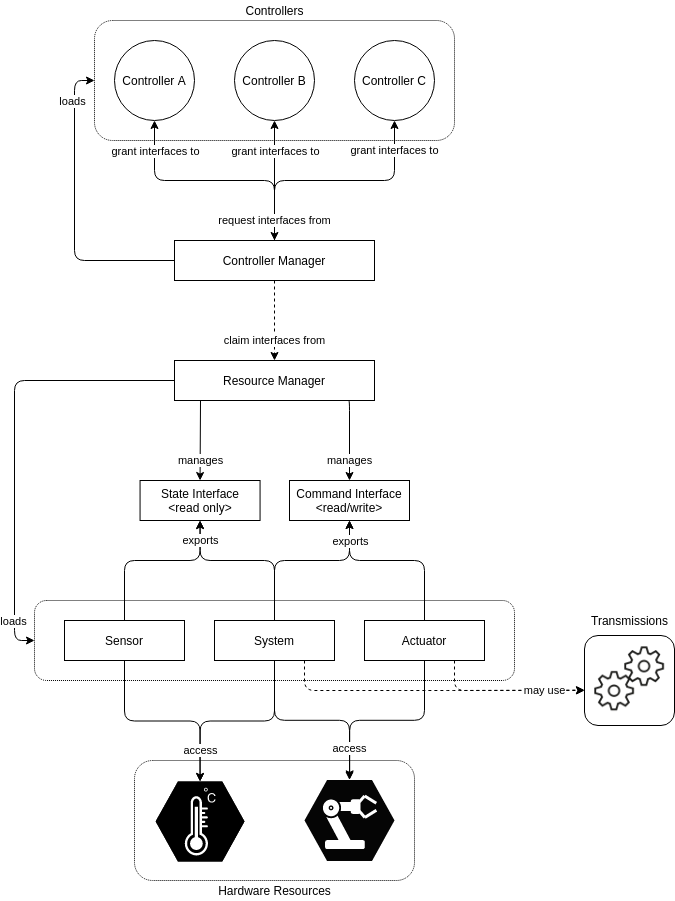

下面是官方的架构图：

  • Controller: 实现的各个控制器

  • Controller Manager: 负责控制器生命周期管理，包括向资源管理器（Resource Manager）申请硬件接口

  • Resource Manager: 硬件接口管理

  • State Interface: 只能够读数据的状态类接口

  • Command Interface: 可读可写的命令类接口

  • Sensor: 传感器类型的接口实现，只会导出状态类接口

  • System: 多自由度硬件，如工业机器人

  • Actuator: 单自由度硬件，如阀门等

自定义硬件及控制器

实现一个 Echo 硬件，给它设置一个数值，他会将数值输出

硬件实现

自定义硬件需要继承对应的接口类并实现对应方法

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

#pragma once

#include <hardware_interface/system_interface.hpp>
#include <hardware_interface/hardware_component_interface.hpp>

namespace robotics_codehub {

class EchoSystemHardware : public hardware_interface::SystemInterface {
public:

    // 生命周期回调
    CallbackReturn on_init(const hardware_interface::HardwareComponentInterfaceParams& params) override;

    // 读取数据
    hardware_interface::return_type read(const rclcpp::Time& time, const rclcpp::Duration& period) override;

    // 写数据
    hardware_interface::return_type write(const rclcpp::Time& time, const rclcpp::Duration& period) override;

private:
    double echo_value_;
};
}

在 on_init 方法里解析 urdf 中声明的 hardware 参数

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

// 解析 urdf 中的 hardware 参数
EchoSystemHardware::CallbackReturn EchoSystemHardware::on_init(
    const HardwareComponentInterfaceParams& params) {
    if (HardwareComponentInterface::on_init(params) != CallbackReturn::SUCCESS) {
        return CallbackReturn::FAILURE;
    }

    // 从 hardware 标签中的 <param> 读取配置
    auto it = params.hardware_info.hardware_parameters.find("echo_value");
    if (it != params.hardware_info.hardware_parameters.end()) {
        echo_value_ = std::stod(it->second);
    } else {
        echo_value_ = 999;
    }

    RCLCPP_INFO(get_logger(), "Init EchoSystemHardware, echo value: %f", echo_value_);

    return CallbackReturn::SUCCESS;
}

read 方法读取硬件数据，这个函数会被周期性调用，这里直接读 echo_value 的值，实际硬件可能是读取串口数据

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

hardware_interface::return_type EchoSystemHardware::read(const rclcpp::Time& time, const rclcpp::Duration& period)  {
    (void)time;
    (void)period;

    for (const auto& [name, desc] : joint_state_interfaces_) {
        RCLCPP_INFO(get_logger(), "Read EchoSystemHardware, read value: %f", echo_value_);
        set_state(name, echo_value_);
    }

    return hardware_interface::return_type::OK;
}

write 方法将数据写入硬件，同样会被周期性调用，这里将值保存在 echo_value_ ，实际可能是写串口

1
2
3
4
5
6
7
8

hardware_interface::return_type EchoSystemHardware::write(const rclcpp::Time& time, const rclcpp::Duration& period)
{
    for (const auto& [name, desc] : joint_command_interfaces_) {
        echo_value_ = get_command(name);
        RCLCPP_INFO(get_logger(), "Write EchoSystemHardware, write value: %f", echo_value_);
    }
    return hardware_interface::return_type::OK;
}

由于硬件实现是以插件的方式动态加载，还需要在最后注册以下

1
2
3
4

#include <pluginlib/class_list_macros.hpp>

// 子类， 基类
PLUGINLIB_EXPORT_CLASS(robotics_codehub::EchoSystemHardware, hardware_interface::SystemInterface)

在 cmake 中将插件编译成动态库

find_package(ament_cmake REQUIRED)
find_package(robotics_cmake REQUIRED)
find_package(pluginlib REQUIRED)
find_package(hardware_interface REQUIRED)
find_package(rclcpp REQUIRED)
find_package(rclcpp_lifecycle REQUIRED)


add_library(echo_system_hardware SHARED
  hardware/echo_system_hardware.cpp
)

ament_target_dependencies(echo_system_hardware
  hardware_interface
  pluginlib
  rclcpp
  rclcpp_lifecycle
)

写一个 echo_system_hardware_plugin.xml 描述文件，内容如下：

<?xml version="1.0"?>
<!-- path: so 文件名称 -->
<library path="echo_system_hardware">
  <!-- name: 插件名称 -->
  <!-- type: 插件类的类型，robotics_codehub 是命名空间 -->
  <!-- base_class_type: 插件基类类型 -->
  <class
    name="ros2_control_echo/EchoSystemHardware"
    type="robotics_codehub::EchoSystemHardware"
    base_class_type="hardware_interface::SystemInterface">
    <description>My Echo System Hardware Interface</description>
  </class>
</library>

在项目根目录下的 CMakeLists.txt 中安装 xml 文件：

pluginlib_export_plugin_description_file(
  hardware_interface
  hardware/echo_system_hardware_plugin.xml
)

实现控制器

  1. 定义控制器支持的参数的 yaml 文件，

    echo_system_controller_parameters:
  echo_system_hardware_interface: {
    type: string,
    default_value: "",
    description: "Name of echo system hardware interface",
    read_only: true,
  }

    这里只定义一个 string 类型参数，为 EchoSystemHardware 提供的接口名称

    在 CMakeLists 中生成 C++ 代码

    find_package(generate_parameter_library REQUIRED)
generate_parameter_library(
  echo_system_controller_params  # 生成的库名
  controller/echo_system_controller_params.yaml  # 你的参数定义文件
)

  2. 定义控制器类

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

    #pragma once

#include <memory>

#include <std_msgs/msg/float64.hpp>

#include <controller_interface/controller_interface.hpp>
#include <realtime_tools/realtime_thread_safe_box.hpp>
#include <realtime_tools/realtime_publisher.hpp>

#include "ros2_control_echo/echo_system_controller_params.hpp"

namespace robotics_codehub {

class EchoSystemController : public controller_interface::ControllerInterface {
public:
    EchoSystemController();

    // 命令类接口配置
    controller_interface::InterfaceConfiguration command_interface_configuration() const override;

    // 状态类接口配置
    controller_interface::InterfaceConfiguration state_interface_configuration() const override;

    // 节点生命周期
    CallbackReturn on_init() override;

    CallbackReturn on_configure(const rclcpp_lifecycle::State& previous_state) override;

    CallbackReturn on_activate(const rclcpp_lifecycle::State& previous_state) override;

    CallbackReturn on_deactivate(const rclcpp_lifecycle::State& previous_state) override;

    // 控制管理器周期性调用 update
    controller_interface::return_type update(const rclcpp::Time& time,
                                             const rclcpp::Duration& period) override;

private:
    std::shared_ptr<echo_system_controller_parameters::ParamListener>  param_listener_;
    echo_system_controller_parameters::Params params_;

    rclcpp::Subscription<std_msgs::msg::Float64>::SharedPtr sub_;
    rclcpp::Publisher<std_msgs::msg::Float64>::SharedPtr pub_;

    realtime_tools::RealtimePublisher<std_msgs::msg::Float64>::SharedPtr realtime_pub_;

    realtime_tools::RealtimeThreadSafeBox<double> recv_;
};

}  // namespace robotics_codehub

  3. 控制器实现之导出命令及接口

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

    controller_interface::InterfaceConfiguration EchoSystemController::command_interface_configuration()
    const {
    RCLCPP_INFO(get_node()->get_logger(), "command interface configuration");

    controller_interface::InterfaceConfiguration conf;
    conf.type = controller_interface::interface_configuration_type::INDIVIDUAL;
    conf.names.push_back(params_.echo_system_hardware_interface);

    return conf;
}

controller_interface::InterfaceConfiguration EchoSystemController::state_interface_configuration()
    const {
    RCLCPP_INFO(get_node()->get_logger(), "state interface configuration");

    controller_interface::InterfaceConfiguration conf;
    conf.type = controller_interface::interface_configuration_type::INDIVIDUAL;
    conf.names.push_back(params_.echo_system_hardware_interface);
    return conf;
}

    即控制器要控制的命令接口，控制器启动时会由 Controller Manager 绑定对应接口

  4. 实现生命周期函数，在 on_init 时获取参数

    1
2
3
4
5
6
7
8
9

    controller_interface::CallbackReturn EchoSystemController::on_init() {
    param_listener_ =
        std::make_shared<echo_system_controller_parameters::ParamListener>(get_node());
    params_ = param_listener_->get_params();

    RCLCPP_INFO(get_node()->get_logger(), "on init: %s", params_.echo_system_hardware_interface.data());

    return CallbackReturn::SUCCESS;
}

  5. 在 on_configure 时创建 ROS 话题

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

    controller_interface::CallbackReturn EchoSystemController::on_configure(
                                                                        const rclcpp_lifecycle::State& previous_state) {
    (void)previous_state;
    RCLCPP_INFO(get_node()->get_logger(), "on configure echo sensor controller");

    sub_ = get_node()->create_subscription<std_msgs::msg::Float64>(
        "~/set_echo_value", rclcpp::SystemDefaultsQoS(),
        [this](const std::shared_ptr<std_msgs::msg::Float64> msg) -> void {
            recv_.set(msg->data);
        });

    pub_ = get_node()->create_publisher<std_msgs::msg::Float64>("~/echo_value",
                                                                rclcpp::SystemDefaultsQoS());
    realtime_pub_ =
        std::make_shared<realtime_tools::RealtimePublisher<std_msgs::msg::Float64>>(pub_);

    return CallbackReturn::SUCCESS;
}

    set_echo_value 会设置 echo 值，设置后保存在 recv_ 变量里，recv 是 realtime_tools::RealtimeThreadSafeBox<double> 类型，可以在 ros 回调线程和实时线程直接安全的转递值

  6. 实现 update 函数， update 函数会周期性在实时线程调用

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

    controller_interface::return_type EchoSystemController::update(const rclcpp::Time& time,
                                                               const rclcpp::Duration& period) {
    (void)time;
    (void)period;

    auto ref = recv_.try_get();
    if (ref.has_value()) {
        double val = ref.value();
        for (auto& cmd : command_interfaces_) {
            RCLCPP_INFO(get_node()->get_logger(), "update value: %f", val);
            (void)cmd.set_value(val);
        }
    }

    for (auto& state : state_interfaces_) {
        auto maybe = state.get_optional(0);
        if (maybe.has_value()) {
            std_msgs::msg::Float64 msg;
            msg.data = maybe.value();
            RCLCPP_INFO(get_node()->get_logger(), "update state name: %s, value: %f", state.get_name().data(), msg.data);
            realtime_pub_->try_publish(msg);
        }
    }

    return controller_interface::return_type::OK;
}

    update 分为两步：

    1. 从 recv_ 中获取值，然后设置值

    2. 从 state_interfaces_ 中获取值并通过 realtime_pub 安全的发布

  7. 最后导出插件

    1
2

    PLUGINLIB_EXPORT_CLASS(robotics_codehub::EchoSystemController,
                  controller_interface::ControllerInterface)

  8. 编译成动态库

    find_package(controller_interface REQUIRED)
add_library(echo_system_controller SHARED
  controller/echo_system_controller.cpp
)

ament_target_dependencies(echo_system_controller
  controller_interface
  pluginlib
  rclcpp
  rclcpp_lifecycle
  echo_system_controller_params # 自动生成的参数库
)

install(
  TARGETS echo_system_controller
  LIBRARY DESTINATION lib
  ARCHIVE DESTINATION lib
  RUNTIME DESTINATION bin
)

  9. 声明插件

    <?xml version="1.0"?>
<library path="echo_system_controller">
  <class
    name="ros2_control_echo/EchoSystemController"
    type="robotics_codehub::EchoSystemController"
    base_class_type="controller_interface::ControllerInterface">
    <description>My Echo System Hardware Controller</description>
  </class>
</library>

    CMakeLists.txt 中安装

    pluginlib_export_plugin_description_file(
  controller_interface
  controller/echo_system_controller_plugin.xml
)

ros2_control 框架的使用

  1. 在 urdf 里面声明硬件接口

    <?xml version="1.0"?>
<robot name="my_sensor_robot">

  <!-- ros2_control 硬件接口声明 -->
  <ros2_control name="EchoSystemHardware" type="system">
    <hardware>
      <plugin>ros2_control_echo/EchoSystemHardware</plugin>
      <param name="echo_value">11.111</param>
    </hardware>

    <joint name="echo_system_hardware">
      <command_interface name="echo_value"/>
      <state_interface name="echo_value"/>
    </joint>
  </ros2_control>

  <link name="base_link"/>
  <link name="system_link"/>

  <joint name="echo_system_hardware" type="continuous">
    <parent link="base_link"/>
    <child link="system_link"/>
  </joint>


</robot>

  2. 发布 urdf

    1

    ros2 run robot_state_publisher robot_state_publisher --ros-args -p robot_description:="$(cat install/ros2_control_echo/share/ros2_control_echo/urdf/echo_system_hardware.urdf)"

  3. 写 controller 的配置文件，包括控制器配置

    controller_manager:
  ros__parameters:
    update_rate: 1

echo_system_controller:
  ros__parameters:
    type: "ros2_control_echo/EchoSystemController"
    echo_system_hardware_interface: "echo_system_hardware/echo_value"

  4. 启动 Controller Manager

    1

    ros2 run controller_manager ros2_control_node --ros-args --params-file install/ros2_control_echo/share/ros2_control_echo/config/echo_sensor_ros_control.yaml

    启动成功后会加载 Echo Hardware ，并且周期性调用 read 和 write ，下面是启动后的日志

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

    [INFO] [1780908053.701387441] [controller_manager]: Using Steady (Monotonic) clock for triggering controller manager cycles.
[INFO] [1780908053.704657475] [controller_manager]: Subscribing to '/robot_description' topic for robot description.
[INFO] [1780908053.707790704] [controller_manager]: update rate is 1 Hz
[INFO] [1780908053.707835626] [controller_manager]: Overruns handling is : enabled
[INFO] [1780908053.707840170] [controller_manager]: Spawning controller_manager RT thread with scheduler priority: 50
[WARN] [1780908053.707904519] [controller_manager]: Could not enable FIFO RT scheduling policy: with error number <1>(Operation not permitted). See [https://control.ros.org/master/doc/ros2_control/controller_manager/doc/userdoc.html] for details on how to enable realtime scheduling.
[INFO] [1780908053.891317702] [controller_manager]: Received robot description from topic.
[INFO] [1780908053.891438034] [controller_manager]: Enforcing command limits is disabled. Command limits from URDF will be ignored.
[INFO] [1780908053.893929516] [controller_manager]: Loading hardware 'EchoSystemHardware'
[INFO] [1780908053.894856764] [controller_manager]: Loaded hardware 'EchoSystemHardware' from plugin 'ros2_control_echo/EchoSystemHardware'
[INFO] [1780908053.894948711] [controller_manager]: Initialize hardware 'EchoSystemHardware'
[INFO] [1780908053.916472060] [controller_manager.hardware_component.system.EchoSystemHardware]: Init EchoSystemHardware, echo value: 11.111000
[INFO] [1780908053.916593742] [controller_manager]: Successful initialization of hardware 'EchoSystemHardware'
[INFO] [1780908053.916794337] [controller_manager]: Activating component 'EchoSystemHardware'.
[INFO] [1780908053.916835732] [resource_manager]: 'configure' hardware 'EchoSystemHardware'
[INFO] [1780908053.916854440] [resource_manager]: Successful 'configure' of hardware 'EchoSystemHardware'
[INFO] [1780908053.916871576] [resource_manager]: 'activate' hardware 'EchoSystemHardware'
[INFO] [1780908053.916896015] [resource_manager]: Successful 'activate' of hardware 'EchoSystemHardware'
[INFO] [1780908053.917060798] [controller_manager]: Registering statistics for : EchoSystemHardware
[INFO] [1780908053.917296139] [controller_manager]: Resource Manager has been successfully initialized. Starting Controller Manager services...
[INFO] [1780908055.708362763] [controller_manager.hardware_component.system.EchoSystemHardware]: Read EchoSystemHardware, read value: 11.111000
[INFO] [1780908055.708689766] [controller_manager.hardware_component.system.EchoSystemHardware]: Write EchoSystemHardware, write value: nan
[INFO] [1780908056.708382930] [controller_manager.hardware_component.system.EchoSystemHardware]: Read EchoSystemHardware, read value: nan
[INFO] [1780908056.708499832] [controller_manager.hardware_component.system.EchoSystemHardware]: Write EchoSystemHardware, write value: nan
[INFO] [1780908057.708349017] [controller_manager.hardware_component.system.EchoSystemHardware]: Read EchoSystemHardware, read value: nan
[INFO] [1780908057.708548208] [controller_manager.hardware_component.system.EchoSystemHardware]: Write EchoSystemHardware, write value: nan
[INFO] [1780908058.708411996] [controller_manager.hardware_component.system.EchoSystemHardware]: Read EchoSystemHardware, read value: nan
[INFO] [1780908058.708649124] [controller_manager.hardware_component.system.EchoSystemHardware]: Write EchoSystemHardware, write value: na

  5. 启动控制器

    1

    ros2 run controller_manager spawner echo_system_controller --param-file install/ros2_control_echo/share/ros2_control_echo/config/echo_sensor_ros_control.yaml

    提示加载成功后，控制器使用的话题就能看到了

  6. 通过接口设置 echo 的值

    1

    ros2 topic pub /echo_system_controller/set_echo_value std_msgs/msg/Float64 "{data: 1343242.34}"

  7. 通过接口查看 echo 的值

    1

    ros2 topic echo /echo_system_controller/echo_value

完整代码路径： https://github.com/xhcoding/robotics-codehub/ros2/ros2_control_echo
